Solar Tracker 0.2 3d Printed 20 Watt Flexible Solar Panel






4  x  608 Bearing Holder Dual Rail M6 24mm apart
4  x 21 teeth parametric involute gears

2x Solar Panel Holder
Tripod Adapter
4xSolar Panel Attachment

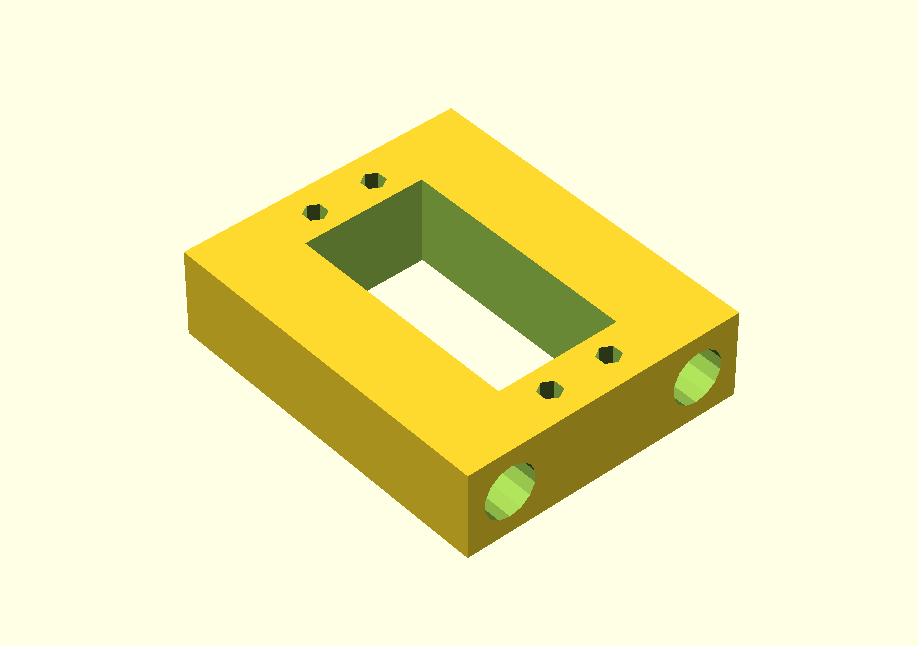

Servo Holder Dual Rail M6 24mm apart

Servo Mechanism SubAssembly

1x Standard Servo and horn.
2x 120mm M6 ThreadedRod
1x Servo Holder Dual Rail M6
2x 608 Bearing Holder Dual Rail M6
2x 608 Bearings
3x M8 HexNuts
2x 21 teeth parametric involute gears
2x MachineScrews



Tripod Stand Adapter
M8 Hex Head Capture Dual Rail

Full Assembly Diagram
